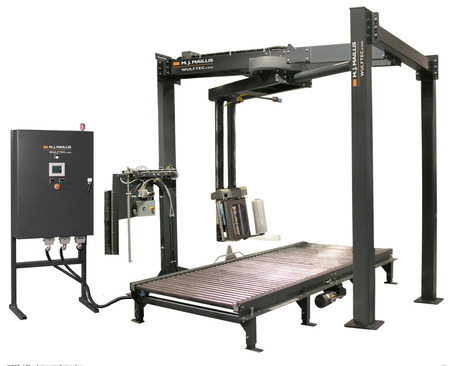

Large wulftec wcrt 175 stretch wrapper

Wulftec

Conveyorized Fully Automatic Rotary Arm Stretch Wrapping System

Model: WCRT-175



The WCRT-175 model is an automatic conveyorized rotary tower. All you need to do with this system is change the roll of film. It can keep up with the most demanding production rates and wrap almost anything. Since the load remains stationary, this system is ideal for wrapping very light, very heavy, tall, or unstable loads. It is also great in wash down and dusty applications. Wulftec's wrap over clamp ensures the tail is secured and additional features ensure lower maintenance and better reliability.


  • 5,000 lbs load weight capacity (optional 6000 lbs)
  • The control panel is UL508A approved
  • 25" ring gear with pinion gear drive
  • Superior Electrical/Electronic Design including Allen Bradley MicroLogix 1400 PLC with an integrated Ethernet port. logic control
  • Wulftec’s exclusive 20" NO-THREAD® Powered Pre-Stretch Carriage (30" optional)
  • Lifetime warranty on prestretch rollers blue compound
  • Readily available non-proprietary parts
  • Conveyor rollers 2 ½" diameter on 3" centers for smooth operation
  • Motors speed control are made through AC frequency drives (except conveyors with contactors)
  • Allen Bradley Monochrome Touch Screen – play an active part in avoiding operator errors by offering a great versatility for customized information and alarm diagnostic

Production Rate
  • 60 loads per hour
Maximum Load Weight
  • 5000 lbs
  •
  • (6000 lbs*)
Maximum Load Size
  • 48" L x
  • 48" W x
  • 80" H
Controls
  • NEMA 4/12 control cabinet with quick disconnect
  • Allen Bradley monochrome Touch Panel
  • Allen Bradley MicroLogix 1400 PLC with an integrated Ethernet port
  • 24V control system
  • Current overload protection
  • Sick autoheight sensing photoeye with on/off mode
  • Power on/off lockable switch and indicator light
  • 230VACMotors with AC variable frequency drives and contactors
  • Two emergency stop stations (1 on panel / 1 in wrap zone)
  • Manual mode for rotation fwd/rev and carriage up/down
  • Variable rotary arm speed (15 RPM)
  • Double brush dust tight slip ring
  • Intuitive alarms diagnostic
  • Reset function
  • Separate top and bottom wrap selections (0-9)
  • Separate up and down carriage speeds
  • Manual conveyor jog fwd only (fwd/rev optional*)
  • Film force to load control
  • Manual clamp jog
  • Alarm beacon
  • Dynamic braking system for rotary arm with AC drive
  • 1 HP 230VAC Motor & AC variable frequency drive
Machine Dimensions
  • 138" L x
  • 141" W x
  • 142" H
Approximate Shipping Weight
  • 3700 lbs
Electrical Requirements
  • 230 V /
  •
  • 3 ph /
  •
  • 60Hz
  • 15A
Pneumatic Requirements
  • 3 cfm @
  • 80 psi
Film Carriage Drive
  • Emergency stop for arm path obstruction
  • Angled carriage to wrap approx. 2" from conveyor level
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Two #50 carriage lifting chains
  • Dual steel supporting boom
  • Power track for efficient guiding of wires
  • Machined UHMW-PE carriage glides on 1/2" CRS rails
Film Delivery System
  • Lifetime warranty on pre-stretch rollers blue compound
  • 20" NO-THREAD® Powered Pre-Stretch Carriage
  • Film force release for easy pull at start and end of cycle
  • 50-300% pre-stretch ratio (preset to customer spec, Std 200%)
  • Electronic film tension control with analog sensor
  • Sensing device for film out/broken with visual alarm
  • Lexan roller cover for operator safety
Rotary Arm Drive
  • 25" Heavy duty Ring GEAR Bearing, with Pinion GEAR Drive
  • 15 RPM variable speed
  • Dual steel boom rotary arm
  • 1 HP 230VAC motor with Allen Bradley variable frequency drive
  • Electronic soft start/stop
  • Positive arm alignment controlled by "Proximity Sensor"
  • Dynamic braking system for rotary arm with AC drive
  • Protective guard covering ring gear
Film Tail Treatment
  • Automatic film clamping device
  • Pulsed controlled cutter
  • Film alignment arm
  • Brush-on film tail treatment
  • (Heat Seal treatment optional*)
Conveyor
  • Standard pass height 18"
  • Powered process conveyor, 11'-6" long
  • (Other pass heights available, please consult factory*)
  • 2- 1/2" diameter rollers on 3" centers
  • 52" BFR (between frame rails)
  • 3/16" walls cold rolled electric welded steel rollers
  • All rollers driven via #40 chain
  • 1 HP 230VAC motor with contactor starter
  • Heavy-duty structural steel design, interlocking style for continuous equal roller spacing
  • Heavy-duty cast iron flange mounted bearings
  • 30 FPM Fix speed (other optional speeds available*)
Structure
  • Heavy duty structural steel construction: easy access to all components
  • Free standing integrated 3 legs design
  • Safety fencing with security door
Safety Features
  • The Wulftec wrapping system is equipped with 3 photoeyes which monitor access points to wrapping zone and prevent accidental insertion of foreign object during wrapping
  • 2 E-Stop mushroom type push buttons: 1 on control panel, and 1 in wrapping zone
  • (Additional E-Stop are available upon request*)
  • Wrapping zone enclosed by heavy-duty personnel obstruction fencing. Complete with electronically interlocked access door
  • An object obstruction safety device stops the machine functions should there be any interference in the wrapping area
Technical Information
  • The machine is provided with a manual including electro/mechanical schematics and drawings, maintenance program and PLC program disk
Warranty
  • 3-year unlimited cycle warranty
  • 10-year warranty on steel structure
  • 10-year warranty on 25" ring gear bearings
  • Lifetime warranty on prestretch rollers' blue compound
Notes:
  • Optional
  • Production rate based on load configuration and machine options
  • Overall dimensions of machine in operation
  • All machine specifications are subject to change without prior notice
  • Please consult your distributor for prices.
  • Please note that retrofits are to be installed by a Certified Wulftec Technician.
  •

    Carriage

    30" NO-THREAD® Powered Pre-Stretch Carriage
    Carriage adaptor bracket for 20" film on 30" carriage
    Pneumatic roping dual
    Pneumatic roping dual - extra photoeye
    Pneumatic roping single

    Controls

    Allen Bradley drives - basic system
    Communication bypass mode
    Forward / Reverse
    Lanyard remote
    Remote push button station
    Safety control lockout
    Warning Alarm / Horn

    Conveyors

    Add 5' infeed and outfeed conveyors

    Extension

    Wrap arm diameter extension - 104in
    Wrap arm diameter extension - 92in
    Wrap height extension - 104in
    Wrap height extension - 92in

    Heat seal

    Arm mounted cut & seal

    Heat Seal

    Conveyor side mounted heat seal

    Motors

    Wash down motors
    Wash-down motors on conveyor

    Paint

    Custom color
    Epoxy paint
    Steel-it paint

    Photoeye

    Dark load detection
    Forklift detection

    Scale

    Electronic scale

    Temperature package

    Cold A (32 to 41°F / 0 to 5°C)
    Cold B (5 to 32°F / -15 to 0°C)
    Cold C (-31 to 5°F / -35 to -15°C)
    Fan & Exhaust
    Warm A (up to 115°F / up to 46°C)
    Warm B (104°F / 40°C and up)

    Top platen

    Electric top platen
