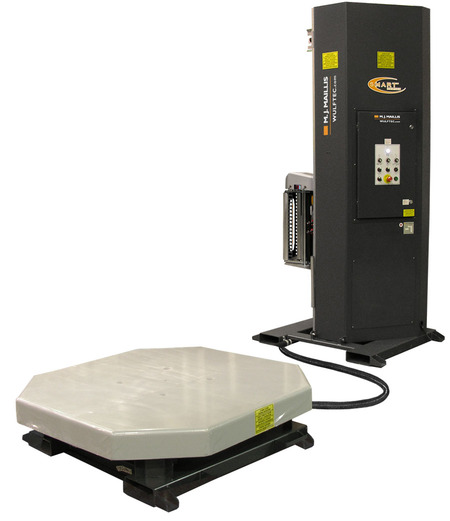

Large wulftec smh spl stretch wrapper


Semi-Automatic Turntable Stretch Wrapper

Model: SMH-SPL

The SMH-SPL model, a standard base high-profile turntable as the ideal stretch wrapping solution for your unique needs.  High-profile split-base turntable stretch wrapper.  For extra space around the turntable.
  • 5,000 lbs load weight capacity
  • NEMA 4/12 control panel dust tight and waterproof
  • The control panel is UL508A approved
  • 100% Structural Steel Construction
  • Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
  • Wulftec's exclusive 20" NO-THREAD® Powered Pre-Stretch Carriage (30" optional)
  • Easily available non-proprietary parts
  • State-of-the-art electrical control panel with all finger safe electrical components
  • Carriage lifting chains enclosed inside tower for operator safety
Production Rate
  • 55 loads per hour
Machine Dimensions
  • 109.50" L x
  • 51" W x
  • 99" H
Load Weight
  • 5000 lbs
Approximate Shipping Weight
  • 1600 lbs
Electrical Requirements
  • 120 V /
  • 1 ph /
  • 60Hz
  • 15A
  • Allen Bradley MicroLogix 1000 or 1200 PLC
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet
  • Autoheight sensing photoeye
  • Power light indicator (Basic)*
  • Power On/Off switch and status light (Standard)*
  • Start/stop push button
  • Large emergency stop (push / pull type)
  • Manual carriage up/down function
  • Variable table speed (16 RPM) with automatic home position
  • Carriage speed adjustment
  • Top and bottom wrap selectors
  • Reinforced wrap/manual rotation control
  • Film tension adjustment
  • Lack of film alarm
  • 14 gauge formed steel tower
  • Forklift Portable base design from both ends
  • Heavy duty structural steel construction
Film Delivery System
  • 20" NO-THREAD® Powered Pre-Stretch Carriage
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Lifetime warranty on pre-stretch rollers blue compound
  • Film force release for easy pull at start and end of cycle
  • 50-400% pre-stretch ratio (preset to customer spec, Std 200%)
  • Electronic film tension control with analog sensor
  • Film roping bar
  • Lexan roller cover for operator safety
  • Proximity sensor on carriage gate to ensure gate is properly closed
Film Carriage Drive
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Two #50 carriage lifting chains enclosed in tower for safety
  • Bearing supported maintenance free guide wheels
  • 51" x 51" octagonal table 3/8" thick
  • 4 casters with polyurethane coating and tapered roller bearings
  • 13 1/4" table height
Turntable Drive
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • 0-16 RPM variable speed
  • #50 ANSI heavy duty chain drive
  • Electronic soft start/stop
  • Positive turntable alignment controlled by proximity sensor
Technical Information
  • The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & Installation instructions
  • Optional
  • Production rate based on load configuration and machine options
  • Overall dimensions of machine in operation
  • All machine specifications are subject to change without prior notice
  • Please consult your distributor for prices.
  • Please note that retrofits are to be installed by a Certified Wulftec Technician.
  • Carriage

    20" hydraulic carriage (no pre-stretch)
    30" hydraulic carriage (no pre-stretch)
    30" NO-THREAD® Powered Pre-Stretch Carriage
    Carriage adaptor bracket for 20" film on 30" carriage
    Manually Adjustable Dual Roping Bar
    Manually Adjustable Single Roping Bar
    Pneumatic roping dual
    Pneumatic roping dual - extra photoeye
    Pneumatic roping single


    SMART start clamp & pull cord


    Foot pedal start / stop
    Lanyard remote
    Lanyard remote for dual turntables
    Pull cord
    Remote push button station
    Remote push button station for dual turtables
    Safety control lockout
    Upgrade from basic to standard
    Upgrade from standard to deluxe
    Warning Alarm / Horn
    Warning flashing light
    Wrap sequence for basic panel


    Wrap height extension - 104in
    Wrap height extension - 116in
    Wrap height extension - 92in


    Wash down motors
    Wash-down motors for top platen


    Custom color
    Epoxy paint
    Steel-it paint


    Dark load detection


    Safety fencing
    Safety fencing for dual turntable units
    Safety light curtains
    Safety light curtains for dual turntable units


    Electronic scale

    Temperature package

    Cold A (32 to 41°F / 0 to 5°C)
    Cold A (32 to 41°F / 0 to 5°C) - Deluxe panel
    Cold B (5 to 32°F / -15 to 0°C)
    Cold B (5 to 32°F / -15 to 0°C) - Deluxe panel
    Cold C (-31 to 5°F / -35 to -15°C)
    Fan & Exhaust
    Warm A (up to 115°F / up to 46°C)
    Warm B (104°F / 40°C and up)

    Top platen

    Electric top platen


    Customized transformer
    Standard transformer
    Transformer for Cold C temperature package


    60in round turntable
    72in round turntable
    90° exit
    Second turntable
