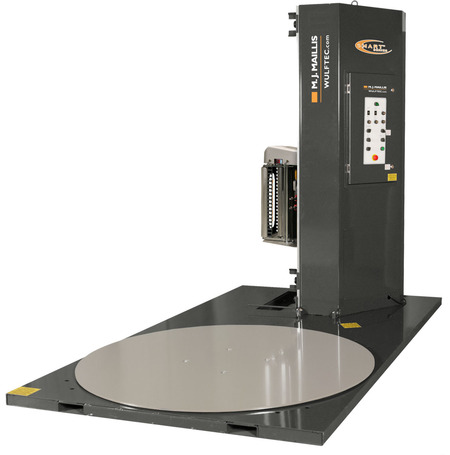

Large wulftec sml 200 stretch wrapper

Wulftec

Semi-Automatic Standard Base Turntable Stretch Wrapping System

Model: SML-200

The SML-200 model is a standard base, all steel structure, low-profile turntable. It features a 65" diameter turntable, 5,000 lbs load weight capacity, abd a maximum load size of 65"L x 55"W (78" diamter). The SMART machine has been designed to allow you to upgrade the control panel at any time, upgrade the base at any time, upgrade the carriage at any time, and change the tower/wrap height at any time.

  • 5,000 lbs load weight capacity
  • NEMA 4/12 control panel dust tight and waterproof
  • The control panel is UL508A approved
  • 100% Structural Steel Construction
  • Superior Electrical/Electronic Design including Allen Bradley MicroLogix PLC and AC drives
  • Wulftec's exclusive 20" NO-THREAD® Powered Pre-Stretch Carriage (30" optional)
  • Easily available non-proprietary parts
  • State-of-the-art electrical control panel with all finger safe electrical components
  • Carriage lifting chains enclosed inside tower for operator safety
Production Rate
  • 55 loads per hour
Machine Dimensions
  • 119.50" L x
  • 66" W x
  • 86.50" H
Load Weight
  • 5000 lbs
Approximate Shipping Weight
  • 2500 lbs
Electrical Requirements
  • 120 V /
  •
  • 1 ph /
  •
  • 60Hz
  • 15A
Controls
  • Allen Bradley MicroLogix 1000 or 1200 PLC
  • 24V control system
  • Current overload protection
  • NEMA 4/12 control cabinet
  • Autoheight sensing photoeye
  • Power light indicator (Basic)*
  • Power on/off switch and status light (Standard)*
  • Start/stop push button
  • Large emergency stop (push / pull type)
  • Manual carriage up/down function
  • Variable table speed (16 RPM) with automatic home position with automatic home position
  • Carriage speed adjustment
  • Top and bottom wrap selectors
  • Reinforced wrap/manual rotation control
  • Film tension adjustment
  • Lack of film alarm
Structure
  • 14 gauge formed steel tower
  • Forklift Portable base design from both ends
  • Heavy duty structural steel construction
Film Delivery System
  • 20" NO-THREAD® Powered Pre-Stretch Carriage
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Lifetime warranty on pre-stretch rollers blue compound
  • Film force release for easy pull at start and end of cycle
  • 50-400% pre-stretch ratio (preset to customer spec, Std 200%)
  • Electronic film tension control with analog sensor
  • Film roping bar
  • Lexan roller cover for operator safety
  • Proximity sensor on carriage gate to ensure gate is properly closed
Film Carriage Drive
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • Two #50 carriage lifting chains enclosed in tower for safety
  • Bearing supported maintenance free guide wheels
Turntable
  • 65" dia. 3/8" steel plate
  • 32 heavy duty non metallic lube-free table supports
  • 3" table height
  • 2-3/8" high base
  • Ramp accessible on all three sides (consult factory when ordering more than one ramp)
Turntable Drive
  • 0-16 RPM variable speed
  • 1 HP AC motor with Allen Bradley variable frequency drive
  • #50 ANSI heavy duty chain drive
  • Electronic soft start/stop
  • Positive turntable alignment controlled by proximity sensor
Technical Information
  • The machine is provided with a manual including electro/mechanical schematics and drawings, troubleshooting guide & Installation instructions
Notes:
  • Optional
  • Production rate based on load configuration and machine options
  • Overall dimensions of machine in operation
  • All machine specifications are subject to change without prior notice
  • Please consult your distributor for prices.
  • Please note that retrofits are to be installed by a Certified Wulftec Technician.
  • Carriage

    20" hydraulic carriage (no pre-stretch)
    30" hydraulic carriage (no pre-stretch)
    30" NO-THREAD® Powered Pre-Stretch Carriage
    Carriage adaptor bracket for 20" film on 30" carriage
    Manually Adjustable Dual Roping Bar
    Manually Adjustable Single Roping Bar
    Pneumatic roping dual
    Pneumatic roping dual - extra photoeye
    Pneumatic roping single

    Clamp

    SMART start clamp & pull cord

    Controls

    E-panel
    Foot pedal start / stop
    Lanyard remote
    Lanyard remote for dual turntables
    Pull cord
    Remote push button station
    Remote push button station
    Remote push button station for dual turtables
    Safety control lockout
    Upgrade from basic to standard
    Upgrade from standard to deluxe
    Warning Alarm / Horn
    Warning flashing light
    Wrap sequence for basic panel

    Extension

    Wrap height extension - 104in
    Wrap height extension - 116in
    Wrap height extension - 128in
    Wrap height extension - 92in

    Motors

    Wash down motors
    Wash-down motors for top platen

    Paint

    Custom color
    Epoxy paint
    Steel-it paint

    Photoeye

    Dark load detection

    Ramp

    Ramp
    Ramp extension
    Ramp with scale option selected

    Safety

    Safety fencing
    Safety fencing for dual turntable units
    Safety light curtains
    Safety light curtains for dual turntable units

    Scale

    Electronic scale

    Temperature package

    Cold A (32 to 41°F / 0 to 5°C)
    Cold A (32 to 41°F / 0 to 5°C) - Deluxe panel
    Cold B (5 to 32°F / -15 to 0°C)
    Cold B (5 to 32°F / -15 to 0°C) - Deluxe panel
    Cold C (-31 to 5°F / -35 to -15°C)
    Fan & Exhaust
    Warm A (up to 115°F / up to 46°C)
    Warm B (104°F / 40°C and up)

    Top platen

    Electric top platen

    Transformer

    Customized transformer
    Standard transformer
    Transformer for Cold C temperature package

    Turntable

    90° exit
    Free roller top
    Free roller transition
    High speed 24RPM
    Second turntable
