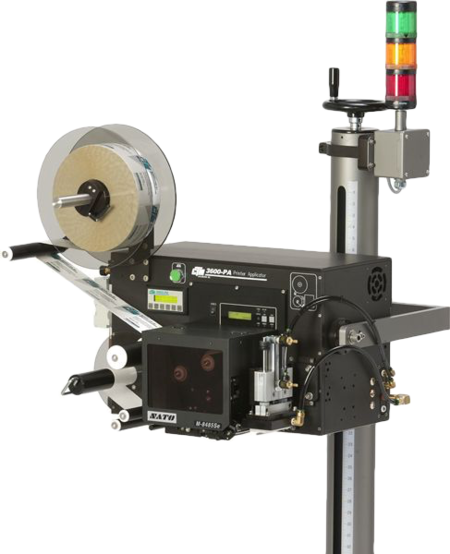

Large 3600pa label applicator

CTM Lableing Systems

3600PA Series Label Printer Applicator

Model: 3600PA

The 3600PA Printer Applicator is a rugged and versatile, high speed, thermal transfer labeler used to print and apply pressure sensitive labels to various products. A Sato, Zebra or Datamax print engine is integrated into an applicator to form a self-contained unit to print variable data.Assembled with right or left hand Sato, Zebra or Datamax printer modules, the unit can be mounted in various positions to apply labels to the tops, sides or bottoms of a multitude of products with its proven tamp-blow application. Small and large labels up to 7.1" wide can be accommodated with its built-in bar codes and alpha-numeric fonts and 203, 305 or 600 dpi print resolution.The plc control with user-friendly display interface offers quick access to set-up selection for application operating parameters. This feature can also be accessed by remote input.Various onboard I/O signals are pre-wired to an external connector; optional features may be added in the field with minimum investment.Label Size Range for the Sato is 1.0" wide x 1/4" long minimum to 6.5" wide x 10" long maximum, and for the Zebra is 1/2" wide x 1/2" long minimum to 7.1" wide x 10" long maximum. NOTE: Sizes dependent upon print engine model, also contact CTM Integration for custom sizes or shapes.
  • Print Resolution and Speed are 203 dpi, 305 dpi and 600 dpi. with print speeds programmable up to 12"/sec, dpi dependent.
  • Print capabilities include fonts of various sizes and styles with independent height and width expansion; includes OCR A/B.Bar Codes include EAN 8/13, Code 39, Code93, UPC A/E (with extensions), Code 128, 2 of 5, Maxicode, DataMatrix, PDF417, MicroPDF, CODABAR, MSI, and POSTNET.
  • The Graphics feature supports user defined fonts and graphics including custom logos.Labeling Speed is dependant upon label size, print speed and application type.
  • Standard Machine Features include Heavy Duty Construction, Tamp Blow Applicator, External Valves and Controls, Operator Keypad & Display, 12" O.D. Label Roll, I/O Connection and Communication Port Connections.
  • Optional features include Low Label/Low Ribbon, Out Of Label/Out of Ribbon, End of Web, Red, Amber and Green “Ready” Stack Lights and 16" Powered Unwind for large label rolls.

Specifications

Series

3600PA

Length

31.5 in

Width

27.5 in

Height

23.5 in

Approx. Weight

150 lbs

Voltage

108-132 VAC

Current

5 amps

Frequency

50/60 Hz

Phase

Single

Pneumatic

90 psi
3-5 cfm

Communications

RS 232, Parallel, Ethernet, Wireless
Others available

Printing Methods

Thermal Transfer & Direct Thermal


Label Sizes

Min. Sato (W x L)

1.0 x 1/4 in

Max. Sato (W x L)

6.5 x 10 in

Min. Zebra (W x L)

1/2 x 1/2 in

Max. Zebra (W x L)

7.1 x 10 in


Environmental

Environmental (Operating)

(5ºC to 40ºC)
41ºF to 104ºF

Environmental (Storage)

(-20ºC to 40ºC)
-4ºF to 104ºF

Optional features include Low Label/Low Ribbon, Out Of Label/Out of Ribbon, End of Web, Red, Amber and Green “Ready” Stack Lights and 16" Powered Unwind for large label rolls.
