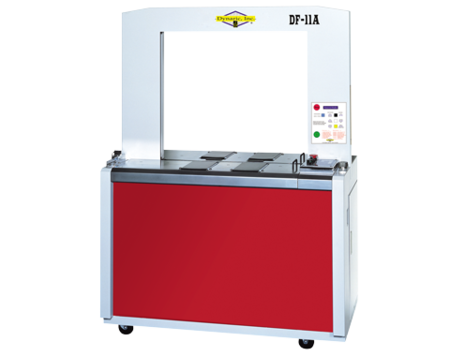

Large dynaric df11a

Dynaric

Fully Automatic Strapping Machine

Model: DF11A

The DF-11A strapping machine offers a cycle time of 1.6 seconds (depending on arch/package size) and it applies up to 37 straps per minute while maintaining a dramatic reduction in machine downtime and required maintenance.

This strapping machine can be integrated into an existing conveyor system, minimizing the need for hand strapping and eliminating unnecessary package handling.

Utilizing powered belts on the table tops and photo switches, this unit can place up to two straps onto packages automatically. The dispenser is internally located which minimizes the required floor space. The strapping material is heat sealed for maximum seal efficiency.

  • Fully automatic; equipped with two photocells and powered table tops
  • Anti-jamming feature eliminates strap jams
  • Easy automatic strap feeding
  • Equipped with a control panel that easily adjusts timer functions, heater temperature setting and seal time
  • Digital display reflects the operational status, including an error code read out
  • Easily adjustable external tension control
  • Heavy duty casters for portability Operates 3/8" or 1/2" strapping
  • Internal dispenser minimizes required floor space
  • Six month warranty on parts

Overall Width:

25.6” (650 mm)

Overall Length:

44.7” (1135 mm)

Overall Height:

60.8” (1544 mm)

Table Height:

31.3” (795 mm)

Weight:

445 lbs (201 kg.)

Cycle Time:

1.6 seconds

Seal Head Location:

Bottom

Sealing Method:

Heat Seal

Cycle initiation:

Manual Mode: Push Button

Automatic Mode: Photo-eye

Strap Size:

3/8” to 1/2” (8mm -12.5mm)

Conveyor Speed:

82’ per min. for a 33 lb. package

65’ per min. for a 44 lb. package

49’ per min. for a 66 lb. package

Package Size:

Min. 1.5” H x 8.5” W

Max. Governed By Arch

Tension:

Externally located, adjustable 10 - 250 lbs.

Mobility:

2 swivel and 2 fixed casters

Dispenser:

Internally located - 8”or 9”I.D./8” Face/18”O.D.

Power:

220 Volt or 440 Volt 3 Phase
