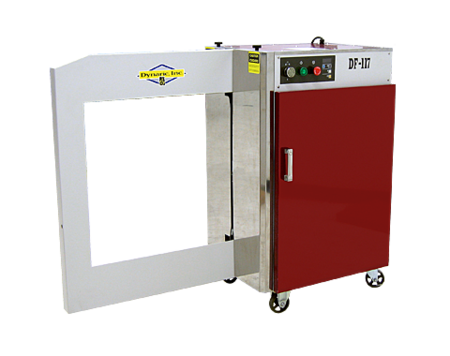

Large dynaric df117 strapping machine

Dynaric

Automatic Side Seal Strapping Machine

Model: DF117

The DF-117 strapping machine is specifically designed to exceed the rigorous demands of today's packaging and unitizing requirements. Ideal for low conveyor applications, the side seal design is uniquely suited for strapping applications where a bottom seal is not practical or recommended.

The DF-117 side seal strapping machine is ideal for integration with low (13” high) conveyor lines. The arch configurations (height and width) increase independently in 200mm (approximately 8”) increments, so configuring the arch for a specific application is not only desirable – it’s ;ossible. Cycle initiation is by start switch or foot switch or it can be fully automated by adding photo switches to the design. The DF-117 can be setup to communicate with your conveyor controls by installing an automation capability kit.

This machine can be integrated into an existing conveyor system, minimizing the need for hand strapping and eliminating unnecessary package handling.

  • Side seal design; ideal for low conveyor applications, as well as heavy and dusty products
  • Operates on 3/8" or 1/2" strapping
  • Internal dispenser; minimizing required floor space
  • Control pad; easily adjusts timer functions, heater temperature setting and seal time
  • Adjustable external tension control for a wide range of product
  • Easy strap feeding function
  • Available in a wide range of arch sizes
  • Digital display reports operational status, including error code read out
  • Casters allow for easy mobility
  • Operates on 220 volt 3 phase power; also available in 115 volt
  • Six month warranty on parts

Overall Width:

24.4" (620 mm)

Overall Length:

63.4" (1610 mm)*

Overall Height:

49.6" (1260 mm)*

Seal Head Location:

Side: 27.4" (695 mm)

Side: 19.5" (495 mm)***

Weight:

585lbs (265 kg)*

Cycle Time:

2.5 seconds*

Cycle Initiation:

Panel switch or foot switch

Strap Size:

3/8" & 1/2"

Package Size:

Min. 1.2" H x 1.6" W

Max. Governed By Arch

Tension:

Externally located, adjustable 10 - 250 lbs.

Sealing Method:

Heat Seal

Mobility:

2 swivel and 2 fixed casters

Dispenser:

Internally located - 9"I.D./8" Face/18"O.D.

Power:

220V, 3 phase, 60Hz - Standard

440V, 3 phase, 60Hz **

120V Single Phase ***
