Strapping Equipment

Large dynaric d2400

Dynaric

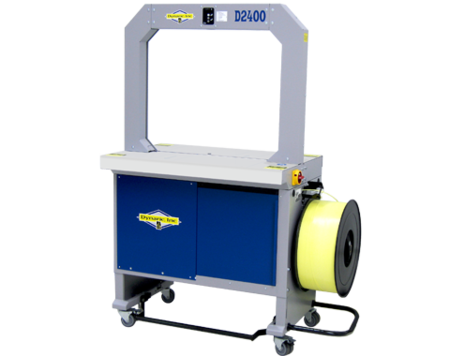

High Speed Automatic Strapping Machine

Model: D2400

The D2400 is a high speed strapping machine designed to increase productivity and reduce machine downtime. When initiated the strap is pulled around the package then tightened to the precise tension, the plastic strap is then heated, sealed and pressed to create the best seal possible all in approx 1.2 seconds.

The D2400 has a low maintenance strapping head with minimal moving parts reducing mechanical malfunction due to part failure or wear. All body panels can be easily removed to access the strapping head, electrical box and strap pool area.

  • NEW state of the art digital display includes a "0" tension button for sensitive bundles and up / down arrow keys for simple tension adjustment
  • Automatically detecting and correcting strap problems; and ensuring reliable, JAM-FREE operation
  • High speed cycle time, capable of more than, 50 cycles per minute
  • Optional auto-bundle sensor, senses height and adjusts tension within range
  • Easy strap loading, strap is inserted into the feeding slot and the machine feeds itself
  • Equipped with safety strap cutters out of the machine; no knives or scissors are necessary to cut strap
  • Automatic strap eject removes any leftover strap when strap coil is finished
  • External dispenser allows you to determine when strap is low. The external location, coupled with adjustable machine height, allows for convenient and safe coil changes
  • A photo eye switch or foot bar can initiate strap cycle
  • Machine table height can be adjusted up or down, from 29.5" to 35.4", to accommodate your requirements
  • Durable machine with reinforced arch and thick plates holds up to demanding environments
  • Four 3" swivel casters allow for easy mobility
  • Accepts 5mm, 6mm or 9mm strapping, requiring no additional parts or costs
  • Runs on 110V single phase
  • Six month warranty on all parts

Overall Width:

24.6" (615mm)

Overall Length:

46.7" - 72.5" (1187 - 1844mm)*

Overall Height:

58.6" - 64.5" (1327 - 1642mm)*

Table Height:

29.5" - 35.4" (757 - 897mm)

Weight:

375 lbs. - 540 lbs. (170 - 245kg.)*

Cycle Time:

1.1 seconds*

Cycle Initiation:

Photo eye sensor or Foot bar

Strap Size:

1/4" & 3/8" (5mm - 9mm)

Package Size:

Max. Governed By Arch

Min. 1.5" H x 3" W

Tension:

Adjustable electronic control

Seal Head Location:

Bottom

Sealing Method:

Heat Seal

Mobility:

3" Casters

Dispenser:

Externally located-

8" or 9"I.D./8" Face/18"O.D

Power:

110 Volt Single Phase
