Strapping Equipment

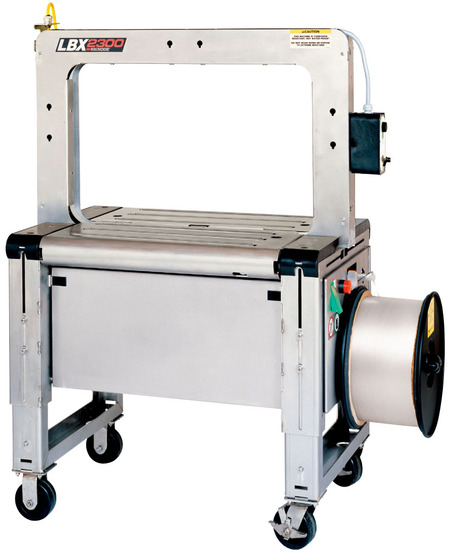

Large signode lbx2300

Signode

Semi-Automatic Strapping Machine

Model: LBX 2300

The LBX-2300 semiautomatic strapping machine is the simplest, most reliable general duty strapping machine on the market today. The LBX-2300 cycles up to 70 straps per minute and is suitable for a wide range of general purpose applications, including mailroom operations and distribution centers.

  • Fewer parts - With 40% fewer parts and more timesaving features, the LBX-2300 simplifies operation and maintenance to save you time and money.
  • Non-directional strap loading - Strap coil pays off from either direction, reducing the downtime and material waste from incorrect loading.
  • Out-of-strap feature - The LBX-2300 ejects the strap at the end of the coil to eliminate the downtime associated with removing the excess strap remaining in the machine.
Cycle Rate Up to 70 straps per minute. Actual production will varydepending on package size, chute size and operator dexterity.
Maximum package weight 100 lbs.
Strapping 5 mm or 6 mm polypropylene strapping
Strap tension 120 volt, 60HzAdjustable from 2 lbs. to 60 lbs.
Electrical requirements 120 volt, 60Hz, FLA 7 amp; 3 phase voltage optional
Shipping weight
  • Single or dual compression
  • Single: Up to 120 lbs at 90 lbs psi
  • Dual: Up to 240 lbs at 90 lbs psi
  • Indicator light alerts operator to low strap/out-of-strap
  • conditions and machine malfunction
  • EZ adjustable leg kit — 26" to 40" (660mm to 1015mm)
  • Automatic cut-off and refeed
  • Roller top
