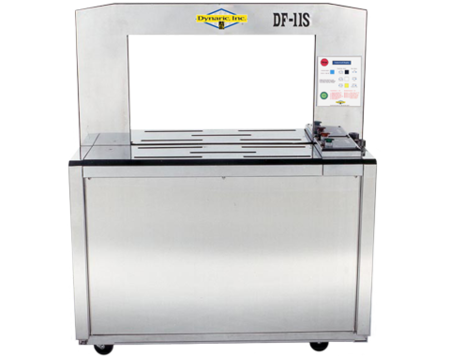

Large dynaric df11s

Dynaric

Stainless Steeel Automatic Strapping Machine

Model: DF11S

The DF11S incorporates a stainless steel cabinet and corrosion resistant (stainless steel, brass, plastic, etc.) parts to provide maximum protection in the harsh environments of the meat and poultry packing industries.

It is capable of over 37 strapping cycles per minute and has a rugged frame and roller tabletop construction. The arch configuration is 700mm (27.6”) wide by 400mm (15.75”) high. Cycle initiation is by start switch or foot switch. The DF-11S has a table height of 795mm (31.3”). Operating on 120 volts single-phase power, the machine is also available in single phase and higher voltages as an option.

This machine can be ordered to run 9mm (3/8”) or 12mm (1/2) strap. The dispenser is internally located which minimizes the required floor space and reduces the amount of condensation that can form on the coil. The strapping material is heat sealed for maximum seal strength and efficiency.

  • Anti-jam feature eliminates strap jams in unit
  • Internal dispenser; minimizes required floor space, keeps strap dry
  • Available in 110 volts single phase or 220, 440 volt, 3-phase (optional)
  • Electronic control pads allows the operator to easily adjust timer functions, heater temperature setting and seal time
  • Digital display reflects the unit’s operational status, including an error read-out for easy troubleshooting
  • Easy strap feeding and adjustable external tension control and heat seal allows operators to strap packages in easy, efficient manner
  • Cycle initiation by foot switch or push button
  • Energy saving feature; motor automatically shuts down when machine is not in use
  • Heavy-Duty casters allow for the machine to be easily moved throughout your facility
  • Available for use with 3/8" or 1/2" strapping

Overall Width:

25.6" (650 mm)

Overall Length:

44.7" (1135 mm)*

Overall Height:

60.8" (1544 mm)*

Table Height:

31.3" (795mm)

Weight:

506 lbs (230 kg)*

Cycle Time:

1.6 seconds*

Cycle Initiation:

Foot Switch, Push Button

Strap Size:

3/8" & 1/2"

Package Size:



Max.

 Governed By Arch

Min.

 1.2" H x 1.6" W

Tension:

Externally located, adjustable 10 - 250 lbs

Seal Head Location:

Bottom

Sealing Method:

Heat Seal

Mobility:

2 swivel and 2 fixed casters

Dispenser:

Internally located -

9"I.D./8" Face/18"O.D

Power:

110V, single phase, 220V or 440V, 3 phase, 60Hz **



 * Depending on arch size

** Optional, must be specified at the time of order
