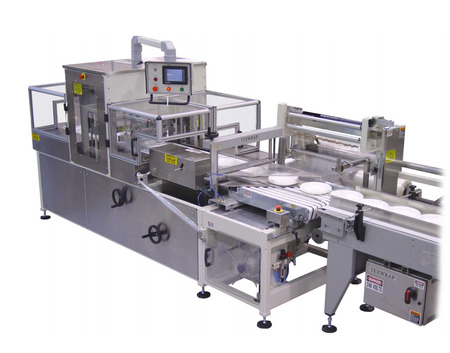

Large texwrap 1809ss shrink wrapper

Texwrap

Continuous Motion Servo Side Seal Wrapper

Model: 1809ss

The 1809 Servo-Max side seal wrapper is Texwrap’s offering for applications demanding a very fast servo wrapper versatile enough to accommodate a variety of product sizes. The 1809 uses “Generation 3” servo technology meaning that it was designed from the ground up to integrate servo technology, PLC control, and the mechanical elements of the machine. The result is one incredibly fast, reliable, and flexible wrapper with minimal moving parts, minimal maintenance requirements and maximum performance.

The 1809 series has many built-in features such as programmable cross seal pressure, speed modulation to automatically increase or decrease system speed to follow upstream production, “autospace” to precisely separate randomly-fed products, and a “maximizer” control to automatically bring the entire system to top speed for any given setup. In designing the 1809 series, Texwrap also considered the many different types of upstream feeding systems with which the 1809 might be paired and built in extra capacity making it easy to integrate into almost any application.

  • Large product size capacity
  • 9" opening, 18" belt width
  • 24" length cross seal bar
  • 54" single wound or 27" center folded film capacity
  • Dual axis servo drives on cross seal
  • Variable AC vector or servo motors
  • Independent conveyors allow relaxed film at cross seal
  • Centerline design with "Film Saver" infeed standard
  • Built in flexibility, run with lug conveyor; autospace mode accepts random fed product; chokespacing for high speed lugless product spacing
  • Easy change-over "no-tools" hand wheel with touchscreen confirmation
  • Swivel mounted touchscreen with set-up product memory & machine diagnostics
  • Upstream/downstream hand shaking, feeder controls, and quick connect cable system for additional equipment
  • Welded tubular construction with powder coat finish
  • Stainless steel inverting head with air bearing surface
  • Internal scrap take-up with advanced oscillating guide, film break & take up reel alarms
  • "TGM" low maintenance side seal
  • Allen Bradley Control Logix Platform
CONVEYOR WIDTH 18"W
CROSS SEAL WIDTH 24" ENDSEAL WIDTH
CROSS SEAL DRIVE DUAL AXIS SERVO
MINIMUM PACKAGE SIZE 4"L X 2"W
FILM WIDTH MAX 54" FLAT FILM, 27" CENTERFOLDED
ELECTRICAL 208/240V, 35/40 AMP, 1 PHASE
AIR REQUIREMENTS 80 PSI, 1 CFM
CONVEYOR HEIGHT ADJ. FROM 32.5" TO 37.5" H
MAXIMUM FILM SPEED 140 FPM
MACHINE CONTROLS ALLEN BRADLEY CONTROL LOGIX
CONTROL PANEL EASY ACCESS SWIVEL MOUNTED
