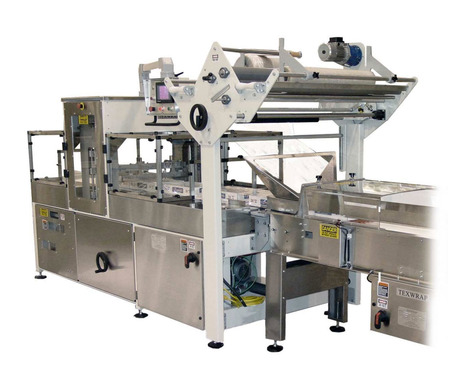

Large texwrap 1809ls shrink wrapper

Texwrap

Continuous Motion Servo Bottom Lap Seal Wrapper

Model: 1809LS

The 1809LS is Texwrap's servo bottom lap seal wrapper for applications running consistent-sized products at high speeds with minimal film usage.

The 1809 series has many built-in features such as programmable cross seal pressure, speed modulation to automatically increase or decrease system speed to follow upstream production, "autospace" to precisely separate randomly-fed products, and a "maximizer" button to automatically bring the entire system to top speed for any given setup.

  • Centerline infeed
  • Two axis servo box motion cross seal
  • Programmable cross seal pressure
  • Allen Bradley Control Logix platform
  • Touch-screen set-up helper & library
  • Built in diagnostics, remote diagnostics available
  • Inverter duty, sensorless vector
  • Allen Bradley servo motors & drives
  • New plug/cable system for easy installation, integration & set-up
  • Speed modulation to follow upstream production
  • 5 standard upstream feeder control outputs with controls
  • Production maximizer button (automatically brings machine to top speed for a given set-up)
  • Autospace feature automatically creates spacing between random spaced products
  • Servo's fiber optic system allows 6 additional servo axes in the 1809 controller for custom infeeds, outfeeds, etc
  • Swivel touch screen for right or left handed line operation
  • Password protected touch screen settings to prevent machine tampering
  • Dual roll unwind
MODEL 1809LS LAP SEAL
JAW OPENING HEIGHT 9" H
CONVEYOR WIDTH 18" W
MAXIMUM FILM SPEED 140 FEET PER MINUTE
MINIMUM PKG. SIZE 4"L X 3"W
ELECTRICAL REQUIREMENT 208/240V, 30/35 AMPS, 1 PHASE
CONVEYOR HEIGHT ADJUSTABLE  33" - 38"H
AIR REQUIREMENTS 80 PSI, 1 CFM
FILM WIDTH MAX. 44" FLAT FILM
