Shrink Equipment

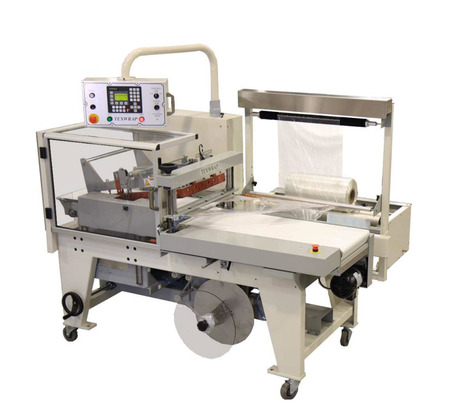

Large texwrap 3322 shrink wrapper

Texwrap

L-Bar Sealers Shrink Packaging

Model: 3322

Texwrap's standard line of sealers are designed for L-seal applications where speed and rugged reliability are prime considerations. Built to the same exacting standards as our high speed wrappers, these versatile units are capable of continuous operation, wrapping up to 50 pieces per minute when combined with the proper infeed.

Standard features for the larger 3322 model include low-mount film cradle, swivel operator panel, touchscreen library to easily recall package setups, automatic dwell time compensator, Allen-Bradley controls, restricted service-level menus, and AC VFD drives. The 100 FPM conveyor speeds and Texwrap’s exclusive Motion TrimTM technology make this unit the fastest L sealer on the market today for its size.

  • Swing arm control panel for easy operator access
  • Low profile "lay-on" cradle with power film unwind now comes standard
  • 240 Volt AC power
  • Inverter duty AC motors for maximum reliability
  • Enhanced guarding standard
  • "Smooth-mate" contoured exit conveyor for smooth transfer of products
  • Variable speed conveyors (20-100 FPM)
  • MOTION TRIM™ technology increases cycle rate
  • Automatic dwell time compensator
  • Password protected user levels
  • Product library
  • Thermostatically controlled hot knife seal system provides efficient long term operation
  • Front or rear product edge trip
  • Tubular steel construction with powder coat finish
  • Multipacking option creates single lane unitizing into one package
Model 3322 L-Sealer
MAXIMUM PACKAGE SIZE 32"L x 19.5"Wx10.5"H
  *MAXIMUM MACHINE DIMENSIONS CANNOT BE COMBINED
MINIMUM PACKAGE SIZE 4"Lx2-3/4"W   /    2"L - 2 3/4" W With Optional Closing Conveyor
FILM WIDTH Max 28"CF / Min 6"CF  / 54" and 72" flat film available
ELECTRICAL 240V, 1 phase
AIR REQUIREMENTS 6 CFM @ 80 PSI
CONVEYOR HEIGHT Adjustable from 29 - 1/2" to 35 - 1/2"H
MAXIMUM PKS PER MINUTE Up to 50 Pkg per minute based on pkg size and configuration
SHIPPING WEIGHT 1,800 LB
