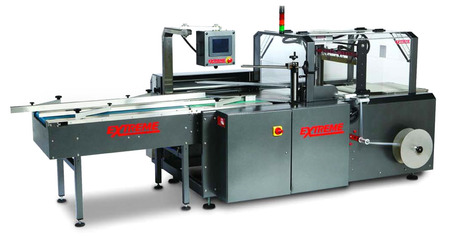

Large extreme s series shrink wrapper

Extreme

Dual Axis Servo Automatic Shrink Wrap Machines

Model: S-Series

The S-series is a robust high performance automated wrapper that can operate in a range of applications and speeds up to 120 parts per minute. The cross seal can operate in Programmable Cam or package-activated AutoLength mode, it can also be operated in Random Length mode. The Programmable Orbit feature produces strong, quality seals with all commercial shrink films. This wrapper offers high speed operation, repeatability, low maintenance, reliability and unmatched flexibility.

  • For speeds up to 120 PPMNo air required
  • Modular design with a wide selection of Extreme infeeds
  • Allen Bradley CompactLogix PLC
  • Allen Bradley Kinetix 6000 servo drives
  • Allen/Bradley Powerflex 40 AC inverter drives
  • Speed modulation programming
  • NextGen Side Sealer with overload & wrap around sensor
  • Maple Systems color touch screen on swivel
  • Quick disconnect photo eyes, proximity and safety door switches
  • Pinwheel film perforator with backup brush
  • Electronic film bunching at cross seal relieves film tension between products
  • Low height easy load film cradle with 16" roll diameter capacity
  • Power selvage winder with dancer bar control & film break detect
  • Adjustable film inverting folders
  • Tool-less change over
  • Multi-zone seal bar for even heat distribution
  • NEMA 12 electrical enclosures
  • Electronic jam prevention programming at cross seal
  • Direct drive motors for maintenance free operation
  • Available in Side Seal or Lap Seal Models
Film Speed: 150 Feet Per Minute
Packages per Minute: 120
Cross Seal Type: 4 variations with multi-zone heaters
Film Types: Polyolefin, LDPE, PVC
Operator Controls: Color Touch Screen on Swivel
Electrical Requirements: 208/240 VAC, 30 Amps Peak, 3 Ph, 60 HZ
Air Requirements: None
Machine Sizes Available Max. Product Dimension
18" wide 18" wide x 8" high x infinite length
24" wide 24" wide x 12" high x infinite length
30" wide 30" wide x 12" high x infinite length
