Shrink Equipment

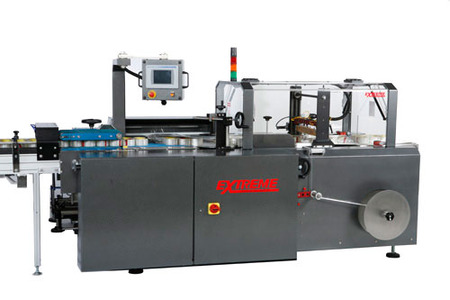

Large extreme xs series shrink wrapper

Extreme

3 Axis Servo Automatic Shrink Wrap Machines

Model: XS Series

XS-Series is ideal for high performance, high speed applicaions that require precision, accuracy, and repeatability at production rates over 150 ppm. Ideal for high volume, high speed production runs of a broad spectrum of products.

The XS-series is ideal for high speed applications where precision and high speed are important parameters. The Allen Bradley Kinetix 6000 provides an impressive servo control platform with numerous communication and control functionality. If you are looking for a wrapping system that can perform in a demanding environment, the XS platform will provide you with a reliable, repeatable, low maintenance, automated wrapping system.

  • Dual axis servo cross seal
  • Servo infeed
  • No air required
  • Modular design with a wide selection of Extreme infeeds
  • Allen Bradley ControlLogix PLC with compact flash card
  • Servo nose belt
  • Allen Bradley Kinetix 6000 servo drives
  • Allen Bradley PanelView 700 color touch screen on swivel operator station
  • Speed modulation programming
  • Light stack with alarm
  • NextGen Side Sealer with overload & wrap around sensor
  • Quick disconnect photo eyes, proximity and safety door switches
  • Pinwheel film perforator with backup brush
  • Low height easy load film cradle with 16" roll diameter capacity
  • Power selvage winder with dancer bar control & film break detect
  • Adjustable film inverting folders
  • Tool-less change over
  • Ethernet communications
  • Multi-zone seal bar for even heat distribution
  • NEMA 12 electrical enclosures
  • Electronic jam prevention programming at cross seal
  • Electronic film bunching at cross seal relieves film tension between products
  • Direct drive motors for maintenance free operation
  • Available in Side Seal or Lap Seal Models
Film Speed: 175 Feet Per Minute
Packages per Minute: 200
Cross Seal Type: 4 variations with multi-zone heaters
Film Types: Polyolefin, LDPE, PVC
Operator Controls: Color Touch Screen on Swivel
Electrical Requirements: 08/240 VAC, 30 Amps Peak, 3 Ph, 60 HZ
Air Requirements: None
Machine Sizes Available Max. Product Dimension
18" wide 18" wide x 8" high x infinite length
24" wide 24" wide x 12" high x infinite length
30" wide 30" wide x 12" high x infinite length
