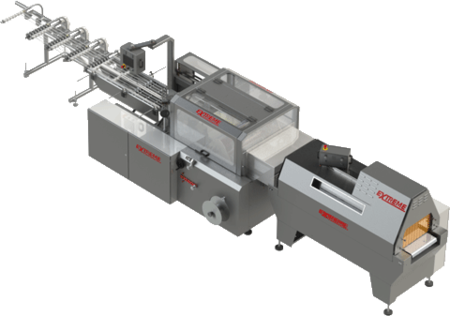

Large extreme xr series shrink wrapper

Extreme

Rotary Automatic Shrink Wrap Machines

Model: XR Series

Extreme XR-Series is one of the highest speed rotary wrappers in the market today.
With a patented rotary mechanism made of only 2 moving parts, the innovative cross seal can run millions of cycles without any wear and tear.

XR-Series is ideal for short profile application that maximize the use of the fixed travel distance of the rotary head. Combined with Extreme's infeed systems this wrapper can maximize your production capacity and lower your labor costs.

XR-Series rotary shrink wrap system provides unrivaled performance and versatility in high speed applications that require repeatable precision seal placement.

  • High speed servo rotary* cross seal
  • No air required
  • Modular design with a wide selection of Extreme infeeds
  • Servo side seal drive
  • Servo exit conveyor
  • Servo cross seal
  • Servo infeeds
  • Direct drive film delivery
  • Direct drive selvage winder
  • Light stack with alarm
  • NextGen Side Sealer with overload & wrap around sensor
  • Color touch screen on swivel
  • Quick disconnect photo eyes, proximity and safety door switches
  • Pinwheel film perforator with backup brush
  • Electronic film bunching at cross seal relives film tension between products
  • Programmable Orbit for smoother operation and higher speeds
  • Low height easy load film cradle with 16" roll diameter capacity
  • Power selvage winder with dancer bar control & film break detect
  • Adjustable film inverting folders
  • Tool-less change over
  • Multi-zone seal bar for even heat distribution
  • NEMA 12 electrical enclosures
  • Ideal for low profile products
  • Lower shrink film consumption
  • Speeds up to 200+ parts per minute
  • Infeed Product Detect Sensor prevents the wrapper from running empty bags
  • Our unique controls scheme delivers high speed performance and smooth operation via one master encoder that controls phasing of the infeed, side seal or vacuum belt and cross seal mechanism.
  • Available with a number of plug and play infeeds to fit your present and future needs.
  • Available in Side Seal or Lap Seal Models
  • * Revolutionary Patented No Maintenance Mechanism
Film Speed: 175 Feet Per Minute
Packages per Minute: 200
Cross Seal Type: Patented rotary,4 variations with multi-zone heaters
Film Types: Polyolefin, LDPE, PVC
Operator Controls: Color Touch Screen on Swivel
Electrical Requirements: 08/240 VAC, 30 Amps Peak, 3 Ph, 60 HZ
Air Requirements: None
Machine Sizes Available Max. Product Dimension
18" wide 18" wide x 8" high x infinite length
24" wide 24" wide x 12" high x infinite length
30" wide 30" wide x 12" high x infinite length
