Case Erectors

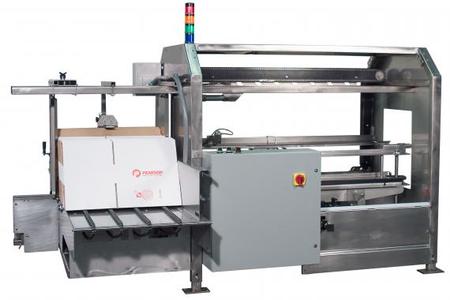

Large pearson ce25 case erector

Pearson

Fully Automatic Case Erector

Model: CE25

The Pearson CE25 family of Case Erectors operates at speeds up to 25 cases per minute. All CE25 models feature an ergonomically friendly, powered, horizontal case magazine. With a vertical case presentation and compact footprint, the CE25 is ideal for limited floor space applications.

  • Speed: Up to 25 cases/min
  • Case Size Range (in): L 8-24 | W 5.5-16 | H 3-18.5
  • Sealing: Hot melt glue, Tape
Speed

Up to 25 cases/min

Case Size Range (in)

L 8-24 | W 5.5-16 | H 3-18.5

Sealing

Hot melt glue

Tape

Controls

Allen-Bradley CompactLogix PLC

PanelView Color HMI

Changeovers

Fast - supported by scales, pointers, quick release handles

HMI Graphical Guided Instructions

Standards

PackML compliant

UL listed control panel

Construction

Heavy duty welded tubular frame

Mild steel

Stainless steel

Low-pressure wash-down

Machine Size Range (ft)

L 12-13 | W 5 | H 6-7

Key Differentiators

Dual opposed case erecting

Positive case selection/transfer

Tolerant of knock-down case variances
