Case Erectors

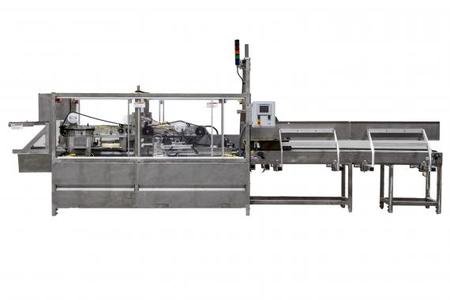

Large pearson ce35 case erector

Pearson

Fully Automatic Case Erector

Model: CE35

The Pearson CE35 family of Case Erectors features a small-footprint and an optional low-level, vertical magazine loader. All models are easy to use and highly reliable, working at speeds of up to 35 cases per minute. The CE35 Intermediate Frame models provide a solution for larger case ranges. The CE35 undersized case model is ideal for erecting ultra small cases.

  • Speed: Up to 35 cases/min
  • Case Size Range (in): L 5-30 | W 3.5-24 | H 3.5-26
  • Sealing: Hot melt glue, Tape
Speed

Up to 35 cases/min

Case Size Range (in)

L 5-30 | W 3.5-24 | H 3.5-26

Sealing

Hot melt glue

Tape

Controls

Allen-Bradley CompactLogix PLC

PanelView Color HMI

Changeovers

Fast - supported by scales, pointers, quick release handles

HMI Graphical Guided Instructions

Standards

PackML compliant

UL listed control panel

Construction

Heavy duty welded tubular frame

Mild steel

Stainless steel

Low-pressure wash-down

Machine Size Range (ft)

L 15-16 | W 6-7 | H 6-8

Key Differentiators

Dual opposed case erecting

Positive case selection/transfer

Tolerant of knock-down case variances
