Case Erectors

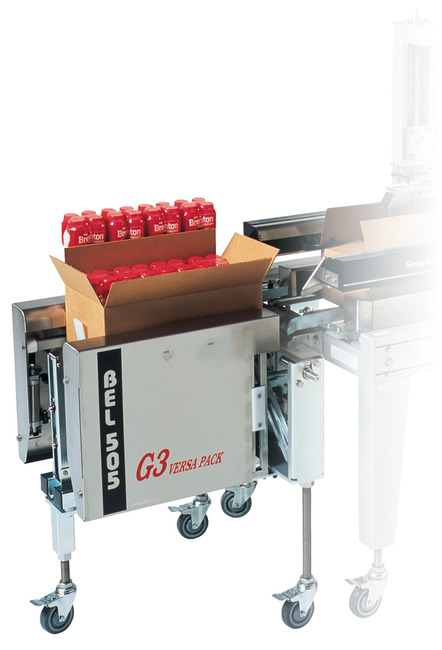

Large wexxar bel505g3 case erector

Wexxar

Semi-Automatic Case Former / Case Erector

Model: 505G3

The BEL 505G3 is a multi-station, semi-automatic case former / case erector and pack station. The new generation BEL 505G3 case erecting machine embodies all the well-known ergonomic innovations of its predecessor, the BEL 505 Semi-Automatic Case Former, but is now a case forming pack station with multiple packing positions. The BEL 505G3 multi-station case erector further enables the operator to stay on top of packing by providing flexibility to pack from the rear end of the case as well as both sides.

The BEL 505G3 box erector also has an expanded standard case width range and is easier and quicker to adjust. Inserting a case blank into a BEL 505 case former results in automatic folding of all four bottom flaps and the case held ready for packing.

  • Multiple packing positions
  • Provides flexibility to pack from the rear end of the case as well as both sides
  • Expanded standard case width range
  • Quick and easy to adjust
  • Connects to any BEL case sealer, enabling one person to form, pack and seal corrugated cases in a single operation
  • Improves safety by eliminating costly repetitive strain injury problems
  • Modular design allows for a customized BEL system delivered to you at an off-the-shelf lead time and price

Components:

  • 1" Heavy Duty Acme Screws
  • C Channel Aluminum Frame
  • Adjustable box stand
  • A-42 Rotary Accumulation Turntable
  • Total Lock Caster Wheels with Extension Adjustment
  • Roller Conveyor for Infeed & Outfeed
  • Flexible Conveyor
  • Spare Parts Kits for Machine Maintenance
  • S-10 Packing Conveyor with Programmable Weigh Scale
  • ErgoLevel Packing Height Adjustment Option
