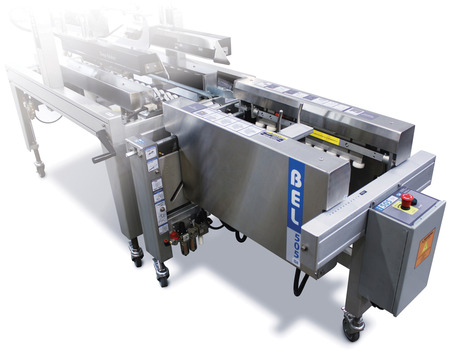

Large wexxar bel505g4 case erector

Wexxar

Semi-Automatic Case Former / Case Erector

Model: 505G4

The BEL 505G4 is an extremely compact, semi-automatic case packing system that integrates with a variety of case sealers, enabling one person to form, pack and seal corrugated cases in a single operation.

The BEL 505G4 allows the operator to stay on top of packing by providing the flexibility to pack from one of three sides of the case. This optimizes floor space in lines where space and operator orientation may be restricted. This former is ideal for packagers looking to further improve ergonomics and increase productivity.

The BEL 505G4 features non-contact sensors that allow it to handle re-shipper cases and cases with a high percentage of recycled fibre or light corrugated material with greater reliability. It also features a color-coded pictorial guide, which facilitates setup and quick change- over in seconds. Bi-lingual instructions are available.

  • Integrates easily with a variety of BEL case sealer options.
  • Equipped with programmable logic controller using non-contact photo sensors.
  • A built in safety feature uses photo sensors in a strategy that ensures only a case blank inserted into the machine will start its cycle.
  • Simple case size change-over - no tools necessary and minimal training needed.
  • Dynamic flap folding system power folds all bottom flaps.
  • Case hold down feature keeps box in place for hands- free case loading.
  • Corrosion resistant construction, attractive stainless steel covers, and paint-free surfaces aid in easy maintenance.
Case Size Range Length Width Height
Minimum 8"
203 mm
5"
127 mm
3.5"
89 mm
Maximum 26"
660 mm
18"
457 mm
unlimited
Machine Speed: Up to 15 cases per minute.
Oversize model available. Consult factory for case size ranges.
Specifications are subject to change without notice.
  • Adjustable box stand
  • A-42 Rotary Accumulation Turntable
  • Total Lock Caster Wheels with Extension Adjustment
  • Roller Conveyor for Infeed & Outfeed
  • Flexible Conveyor
  • Spare Parts Kits for Machine Maintenance
  • S-10 Packing Conveyor with Programmable Weigh Scale
  • ErgoLevel Packing Height Adjustment Option
