Case Erectors

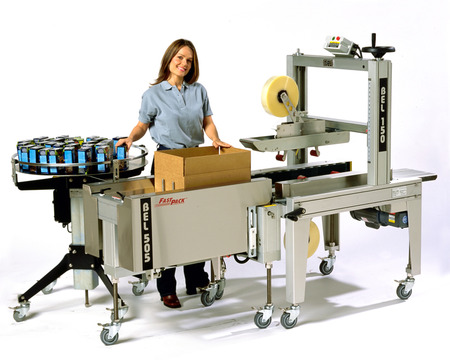

Large wexxar wfps5150 form pack and seal system

Wexxar

Semi-Automatic Form Pack and Seal Combo System

Model: WFPS 5150

The WFPS 5150 combines the features of the BEL 505 Semi-Automatic Case Former and Pack Station and the BEL 150 Pressure Sensitive Case Taper, providing customers with a compact and economical form, pack, and seal solution. Now the process of erecting cases, taping the bottom flaps, loading the case with product, and sealing the top flaps can be done by single person in a single fluid operation.

The operator simply loads a case onto the BEL 505, which holds the case in place with its bottom flaps closed. The operator loads the product into the box, folds the top flaps down and then pushes it through to the BEL 150 case taper, which seals the top and bottom of the case with tape.

The BEL 150 is easily adjustable to handle a wide range of case sizes.

BEL 505 Features:

  • Connects to any BEL case sealer, enabling one person to form, pack and seal corrugated cases in a single operation.
  • Improves safety by eliminating costly repetitive strain injury problems.
  • Modular design allows for a customized BEL system delivered to you at an off-the-shelf lead time and price.

BEL 150 Features:

  • Seals 30 cases per minute (CPM)
  • Quick case size changes
  • Uni-Drive case transport system
  • DEKKA High Performance tape heads
  • Modular design allows for a customized BEL system delivered to you at an off-the-shelf lead time and price.
Case Size Range Length Width Height
Minimum 8"
203 mm
5.5"
130mm
3.5"
89 mm
Maximum 26.5"
672 mm
16"
406 mm
21"
533 mm
