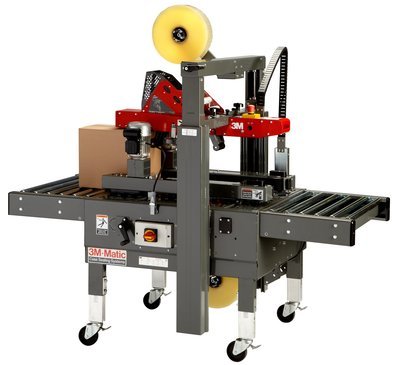

Large 3m matic 8000a case sealer

3M-Matic

Side Belt Adjustable Case Sealer with 2" 3M AccuGlide 3 Taping Head

Model: 8000a

3M-Matic™ Side Belt Adjustable Case Sealer 8000a with 3M™ AccuGlide™ 3 Taping Head is an adjustable side belt drive case sealer. Seals up to 40 cases per minute, using tape widths from 36 mm to 48 mm.

  • 3M AccuGlide 3 Taping Heads ensure reliable application of tape without box damage
  • Interchangeable 2" or 3" taping heads maximize production flexibility
  • Easily accessible side handle and reference ruler make height adjustments a snap for a wide variety of case heights from 3 3/4" to 36"
  • Rugged, dual-extruded columns allow for smooth incremental adjustments to case heights
  • Easy to use features for height and width adjustments along with measurement scales for quick changeover
  • Consistent durable case taper that manually adjusts to handle multiple box sizes
  • Rugged construction with 16-gauge welded steel frame and powder coat paint finish
  • Side belt drive for narrow profile boxes
Brand3M-Matic
ColorIndustrial Gray
Drive SystemSide Belt
Frame MaterialEpoxy Powder Coated Steel
IndustriesPaper, Food and Beverage, Medical, General Industrial, MRO, Print
Machine TypeUniform Sized Boxes
Maximum Box Height28 Inch
Maximum Box Weight85 lb.
Maximum Box Width22 Inch
Minimum Box Height3.75 Inch
Minimum Box Length6 Inch
Minimum Box Width4.5 Inch
OperationOperator folds flaps
Product FormEach
Tape Width2 Inch
Tape Width (metric)48 mm
  • Infeed and exit conveyors
  • Locking casters
  • Low tape indicator
  • Light indicator
  • Box hold-down attachment
