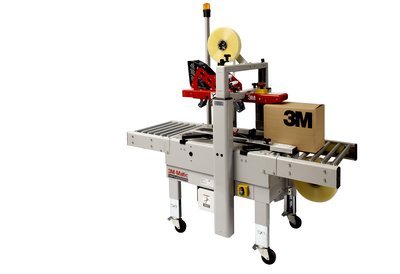

Adjustable Bottom Belt Drive Case Sealer with 3M™ AccuGlide™ 3 Taping Head
3M-Matic™ Case Sealer 200a with 3M™ AccuGlide™ 3 Taping Head is an adjustable bottom belt drive case sealer to dependably seal uniform cases at up to 40 per minute.
Seals top and bottom of box in a broad range of carton sizes from 6" width to 21.5" width and 4.75" high to 24.5" high.
Gear motor and bottom belt drive shift-after-shift dependability with cases up to 85 pounds. Dual masts with twin lead screws for greater stability of taping head. Consistent top and bottom sealing of RSCs with quick, easy adjustments for a wide range of case heights and widths. Compression rollers to close flaps before taping. 3M™AccuGlide™3 Taping Head for low impact sealing that protects cases while providing greater throughput. Side guides adjustable to center cases of various widths for the full length of the unit. Emergency stop positioned for quick and easy access. Laced belts with traction grip for reliable feeding and easy replacement.
Optional items sold separately: Low tape indicator, light staff, infeed and exit conveyors, and locking casters
- Rugged construction with 16-gauge welded steel frame and epoxy paint finish.
- Consistent quality tape application up to 40 cases per minute.
- Easily adjustable to handle uniform box sizes.
|Drive System||Bottom Belt|
|Frame Material||Epoxy Powder Coated Steel|
|Industries||Paper, Food and Beverage, Medical, General Industrial, MRO, Print|
|Machine Type||Uniform Sized Boxes|
|Maximum Box Height||24.5 Inch|
|Maximum Box Weight||85 lb.|
|Maximum Box Width||21.5 Inch|
|Minimum Box Height||4.75 Inch|
|Minimum Box Length||6 Inch|
|Minimum Box Width||6 Inch|
|Operation||Operator folds flaps|
|Tape Width||2 Inch|
|Tape Width (metric)||48 mm|
