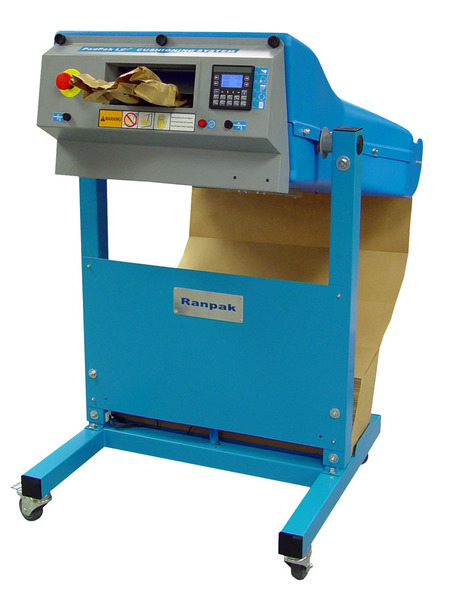

Large padpak lc void fill equipment

Ranpak

High Speed In-the-Box Packaging

Model: PadPak® LC

PadPak® LC converts 45- or 55-lb. fanfold kraft paper into a light cushioning pad for fast, efficient cushioning,  blocking and bracing, or void fill packaging applications.  The converter forms the paper into a protective, shock absorbing paper pad through a patented folding and stitching process.  The unique converter design and its five different modes of operation allow the converter to be used in batch mode or for on demand pad production.
  • Efficient - patented packs of fanfold paper can be spliced together and converted for maximum uptime and throughput
  • Fast - feed rate of 4 feet per second
  • Versatile - 5 modes of operation allow for batch production or in-line, on demand use
  • Adaptable - easy to rotate and adjust height to adapt to packaging environment needs
  • Environmentally friendly - 100% biodegradable, recyclable and renewable paper
Width 32.6"
Height 48" - 63"
Depth 44"
Weight 220 lbs.
Power 110 VAC
Feed Rate 4 feet per second
Controls Located on converter
Cut Method Electronic motor with clutch
Packing Height 43" - 58" (chute height)
Operating Modes Footswitch, EDS, Preset, Automatic and Recipe

Paper Bundle:

Paper Type Width (in.) Basis Weight (lbs.) Length (feet) Weight (lbs.)
Fanfold 30 45 1200 45
Fanfold 30 55 1000 46

Paper Pallet:

Bundle Type Bundles per Pallet Dimensions (in.) Weight (lbs.)
45-lb. 24 48 x 40 Depth 1130
55-lb. 24 48 x 40 Depth 1154
