Void Fill Equipment

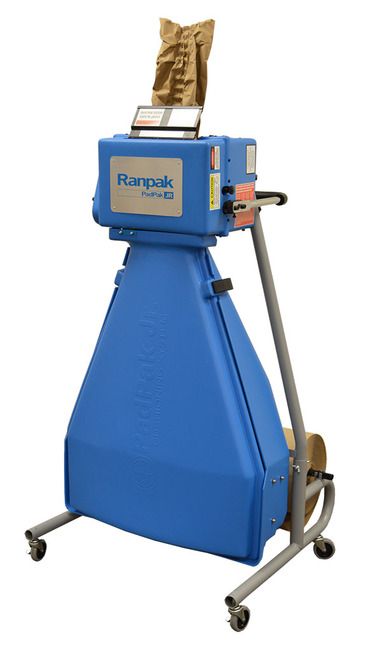

Large padpak jr void fill machine

Ranpak

Converts Multiple Ply Kraft Paper

Model: PadPak® JR

PadPak® JR converts multiple ply kraft paper into a cushioning pad for fast, efficient cushioning and blocking and bracing for small volume packaging needs.  The converter forms the paper into a protective, shock absorbing paper pad through a patented folding and stitching process.  PadPak® JR is easy to operate and requires minimal operator training.  The pad is fed by raising the operator handle to the top position and holding the handle there until the desired pad length is dispensed. The pad is cut by lowering the operator handle to the bottom position.
  • Cost Effective - save money on materials, storage, and labor while increasing productivity
  • Versatile - one material for all your in-the-box packaging needs
  • Excellent Shock Absorption - 2- or 3-ply pads offer excellent cushioning
  • Mobile - converter is set on four casters allowing for ease of movement
  • Environmentally Friendly - 100% biodegradable, recyclable and renewable paper
Width 31"
Height 56"
Depth 29"
Weight 110 lbs.
Power 120 VAC, 60 Hz, 1.4
Feed Rate 12 inches per second
Cut Method Manual lever
Packing Height 55" (chute height)
Operating Modes Manual cut

Paper Roll

Paper Type Width (in.) Basis Weight (lbs.) Length (feet) Weight (lbs.)
2-ply 27 50/50 450 31
3-ply 27 30/30/30 450 33



Paper Pallet

Roll Type (lbs.) Rolls per Pallet Dimensions (in.) Weight (lbs.)
50/50 25 48 x 40 Depth 825
30/30/30 25 48 x 40 Depth 863
