Void Fill Equipment

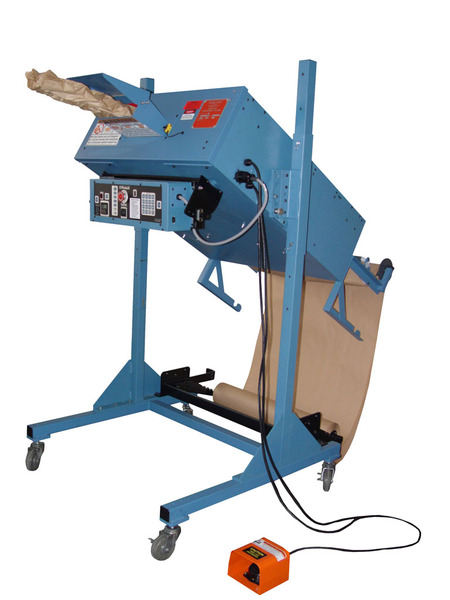

Large padpak sr void fill system

Ranpak

Converts Multi-Ply Kraft Paper

Model: PadPak® SR

PadPak SR is an extremely versatile paper packaging system that converts multi- ply kraft paper into cushioning pads for fast, efficient cushioning, blocking and bracing, and wrapping for all in-the-box packaging needs.  The converter forms the paper into a protective, shock absorbing paper pad through a patented folding and stitching process.  Four modes of operation, including pre-set lengths or footswitch, allow packers versatility during packing.  The PadPak SR is also height adjustable, rotates and can be used in a vertical or horizontal position for increased flexibility.
  • Versatile - several modes of operation allow for batch production or in-line, on demand use
  • Flexible - adaptable and adjustable for seamless integration into any packing environment
  • Excellent Shock Absorption - 2 or 3-ply pads provide excellent cushioning
  • Environmentally Friendly - 100% biodegradable, recyclable and renewable
Width 34"
Height 13"
Depth 65"
Weight 495 lbs.
Power 120 VAC, 60 Hz, 10.4 Amps
Feed Rate 16 inches per second
Controls Located on remote box
Cut Method Electronic motor with clutch
Packing Height 42" — 62" (chute height)

Paper Roll:

Paper Type* Width (in.) Basis Weight (lbs.) Length (feet) Weight (lbs.)
2-ply 30 30/30

30/50

50/50
450

900

1350
Varies by ply configuration
3-ply 30 30/30/30

30/50/30

50/50/50**
450

900

1350
Varies by ply configuration



Paper Pallet:

Roll Type Rolls per Pallet Dimensions (in.) Weight (lbs.)
Regular 25 48 x 40 Depth or

48 x 48 Depth
Varies by ply configuration
Double 16
Jumbo/Jumbo Adhesive 9
30/50/30 Double 14 48 x 48 Depth 1,140
50/50/50 Double 9 48 x 48 Depth 1,050
