Void Fill Equipment

Large packstation wrappak ps void fill system

Ranpak

Wrapping Capabilities Within a Small Footprint

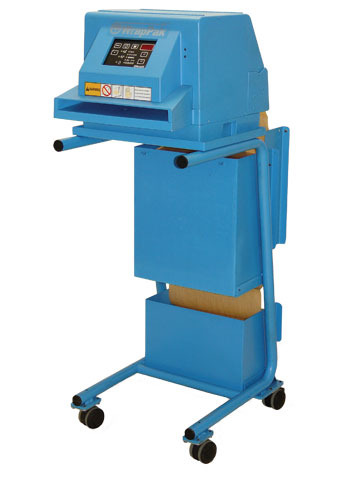

Model: WrapPak PS

The WrapPak PS converter forms two sheets of fanfold kraft paper into a resilient and shock absorbing 12-in. wide wrapping pad to protect product during shipment.  WrapPak’s packaging wrap is ideal for securely wrapping products, lining the bottom of a box, or product separation.  Ranpak's patented fanfold paper with splicing tape virtually replaces the need to reload the converter, optimizing uptime and throughput while minimizing changeovers.  A fully loaded WrapPak PS produces up to 1,500 ft. of wrapping pad on demand — up to six times the amount of a typical roll of bubble.
  • Fast - produces 18 inches of wrapping pad per second
  • Adaptable - 3 modes of operation tailor to specific applications
  • Small Footprint - compact bundles and on demand production capabilities allow for minimal storage space
  • Environmentally Friendly - 100% biodegradable, recyclable and renewable paper
Width 20"
Height 15"
Depth 23"
Weight 85 lbs.
Power 120 VAC
Feed Rate 12" or 18" per second
Controls Located on converter
Cut Method Electronic motor
Packing Height 43" (chute height)
Operating Modes Foot Pedal, Repeat and Pre-set

Paper Bundle

Paper Type Width (in.) Basis Weight (lbs.) Length (feet) Weight (lbs.)
Fanfold 15 30 1660 21
Fanfold 15 45 1200 23
Fanfold 15 55 1000 23



Paper Pallet

Bundle Type Bundles per Pallet Dimensions (in.) Weight (lbs.)*
30-lb. 65 48 x 40 Depth 1420
45-lb. 65 48 x 40 Depth 1517
55-lb. 65 48 x 40 Depth 1550
